WAVE HD

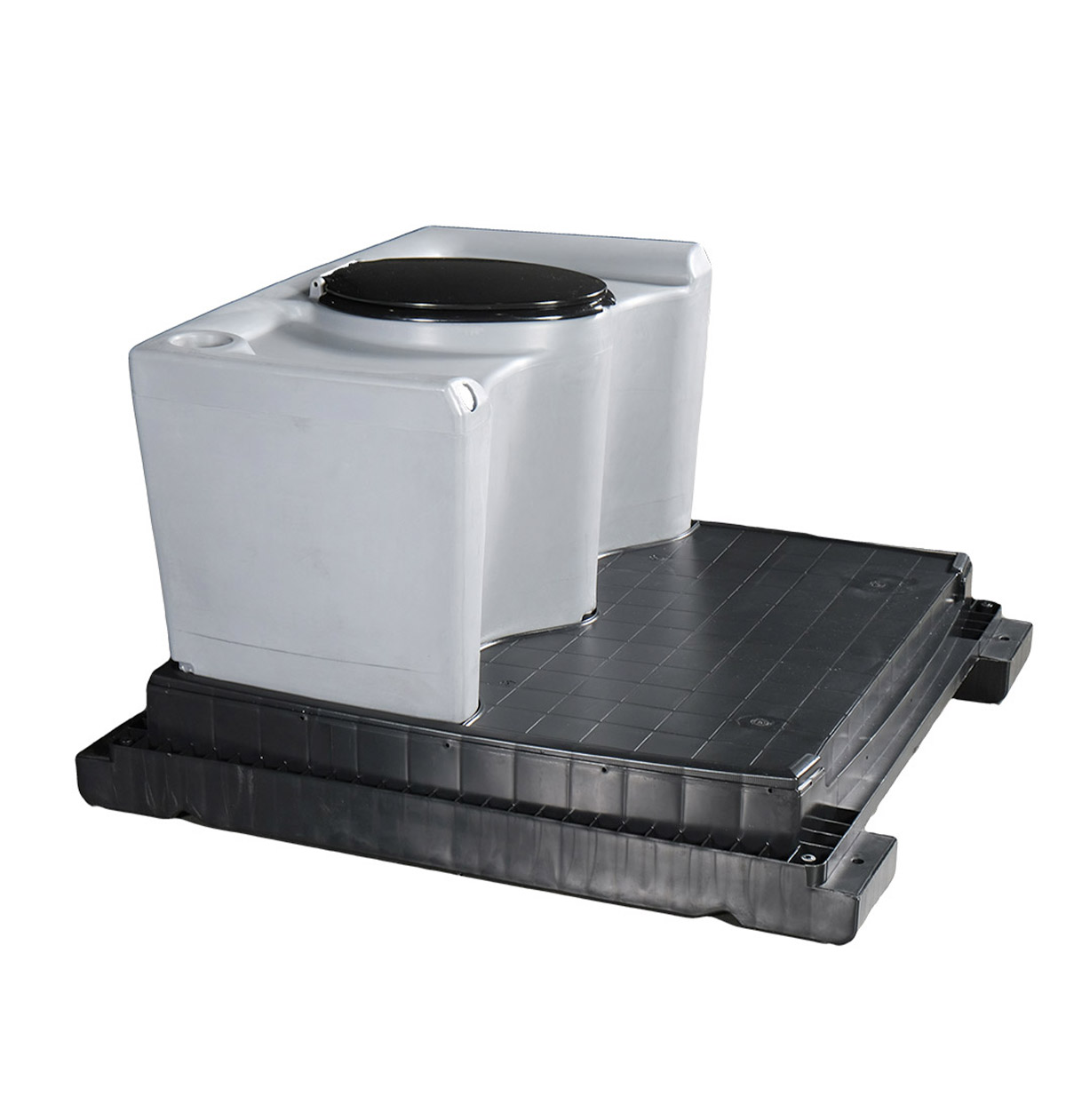

The Wave HD features a rotomolded one-piece tank with gradual slope and deeper sump.

Scroll Down

Wave HD

The Wave HD features a rotomolded one-piece tank with gradual slope and deeper sump.

Technical specifications

Height (internal – external) 83” / 90” inches – 210.82 / 228.60 cm
Width (internal – external) 42” / 43” inches - 106.68 / 109.22 cm
Length (internal – external) 42” / 47.25” inches - 106.68 / 120.02 cm
Step height 9” / 22.86 cm
Seat height 20” / 50.80 cm
Waste tank 60 gallons / 227 liters
Weight 180 lbs / 81.65 kg
Door opening 23” / 52.42 cm
Numer of uses 240

Material used

High density polyethylene with anti-UV treatment
Translucent polyethylene anti-UV treated roof
Anti-slip floor in polyethylene

Features include

60 gallon / 227 liter
One-piece tank with gradual forward slope to promote ease cleaning

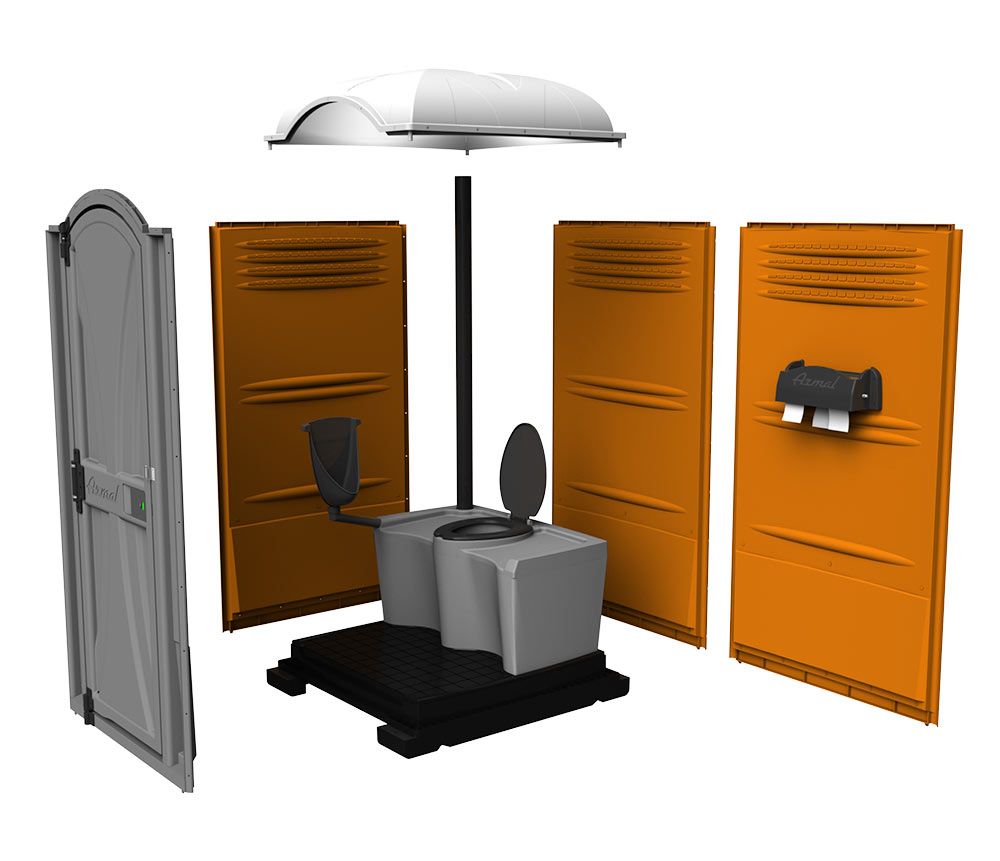

Strong panels that interlock at the corners provide operators with excellent handhold areas
Anti-slip floor Wall urinal
Coat/tool-belt hook
3-rolls toilet paper holder with built in shelf area
Smooth panels with molded ventilation areas for better air circulation
Door lock mechanism features strong metal core
Adjustable door catch to assure complete door closure
Metal door lock hasp
Notched base to help with unloading the restrooms Hover handle strategically placed in door
Translucent roof

Standard colors

(standard colors include gray door/frame)

Blue
Sky Blue
Dark Blue
Sea Green
Green
Lime Green
Dark Green
Caramel
Red
Dark Red
Orange
Yellow
Purple
White
Gun Metal Grey
Grey

Solid colors

Blue
Sky Blue
Dark Blue
Sea Green
Green
Lime Green
Dark Green
Caramel
Red
Dark Red
Orange
Yellow
Purple
White
Gun Metal Grey
Grey

Scented colors

Pine / Dark Green
Vanilla / Cream
Rose / Pink

MIX AND MATCH
COLORS AND FRAGRANCES

Armal portable restrooms and cabins are available in a wide range of colors and can be even provided in your customized RAL color, monochrome or mixed and matched colors. Contact us for feasibility!
